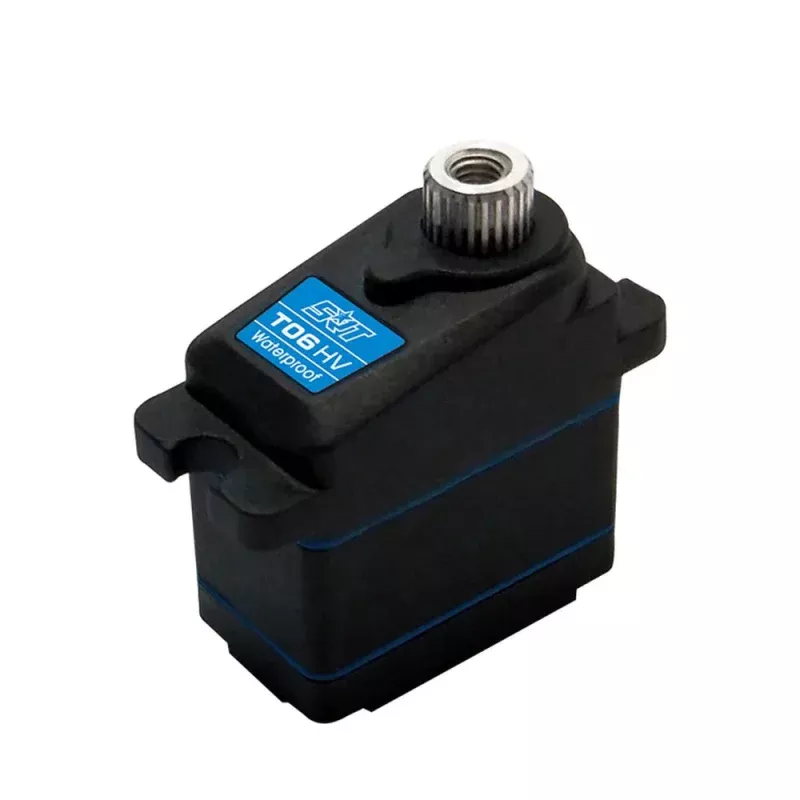

SRT T06 Mini HV DC Waterproof Servo
10sec / 38.9oz @ 7.4V
The latest generation of SRT servos provides you with the performance you need for any vehicle application. This is a mini sized servos for High-Voltage applications up to 7.4V.
FEATURES:
- Ideal for 1/10 on road and 1/10 off road scale applications (such as shifting or diff locking)
- Incredible efficiency and low power consumption
- Superior waterproof
SPECIFICATIONS:
- Type: Digital
- Bearing: Dual
- Motor Type: DC
- Gear Type: Metal
- Gear Material: Copper & Aluminum
- Control System: Pulse Width Control
- Working Frequency: 1520Is / 330hz
- Operating Voltage: dc4.8-7.4v
- Operating Temperature Range: -10 to + 60 degree
- Operating Speed (4.8v): 0.16 sec/60 degrees at no load
- Operating Speed (6.0v): 0.12 sec/60 degrees at no load
- Operating Speed (7.4v): 0.10 sec/60 degrees at no load
- Stall Torque (4.8v): 1.9kg.cm (26.4 oz/in)
- Stall Torque (6.0v): 2.5kg.cm (34.7 oz/in)
- Stall Torque (7.4v): 2.8kg.cm (38.9 oz/in)
- Potentiometer Drive: Direct Drive
- Dimensions: 22.5×12.5×24.0 mm /0.89×0.49×0.94 in
- Weight: 16.0g (0.56 oz)
- Connector Wire Length: jr 350 mm
