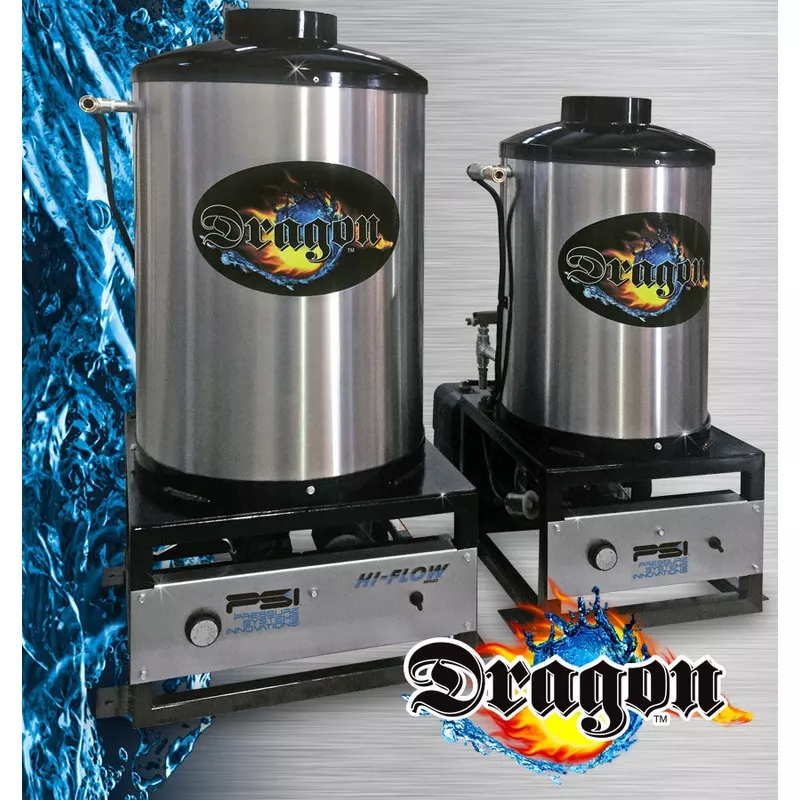

Dragon Hot Box Systems
- Designed to connect to an existing pressure washer to make any cold water system transform into a complete hot water unit
- Top-to-bottom schedule 80 coil for maximum temperature rise
- Stainless coil wrap and control panel
- Safety pressure relief valve
- Flow switch
- Adjustable thermostat temperature control
- Beckett burner
- Powder coated steel frame
- Poly 6-gallon diesel/kerosene fuel tank
- Fuel filter
- 12 volt leads or 120 volt GFCI
Our Dragon Hot Boxes are an external Hot Box option to add heat to your pressure washers flow.
DRAGON Specs:
| D-HB40 | 4000 | 4.0 | ADC | 12 | 280,000 | 17″x21″x40″ |
225 lbs. |
| D-HB40-AC | 4000 | 4.0 | ADC | 120 | 280,000 | 17″x21″x40″ | 225 lbs. |
| D-HB50 | 4000 | 5.0 | ADC | 12 | 350,000 | 17″x21″x40″ | 230 lbs. |
| D-HB50-AC | 4000 | 5.0 | ADC | 120 | 350,000 | 17″x21″x40″ | 230 lbs. |
| D-HB80 | 4000 | 8.0 | ADC | 12 | 420,000 | 21″x26″x46″ | 375 lbs. |
| D-HB80-AC | 4000 | 8.0 | ADC | 120 | 420,000 | 21″x26″x46″ | 375 lbs. |
| D-HB100 | 4000 | 10.0 | SDC | 12 | 455,000 | 21″x26″x46″ | 385 lbs. |
| D-HB100-AC | 4000 | 10.0 | SDC | 120 | 455,000 | 21″x26″x46″ | 385 lbs. |
