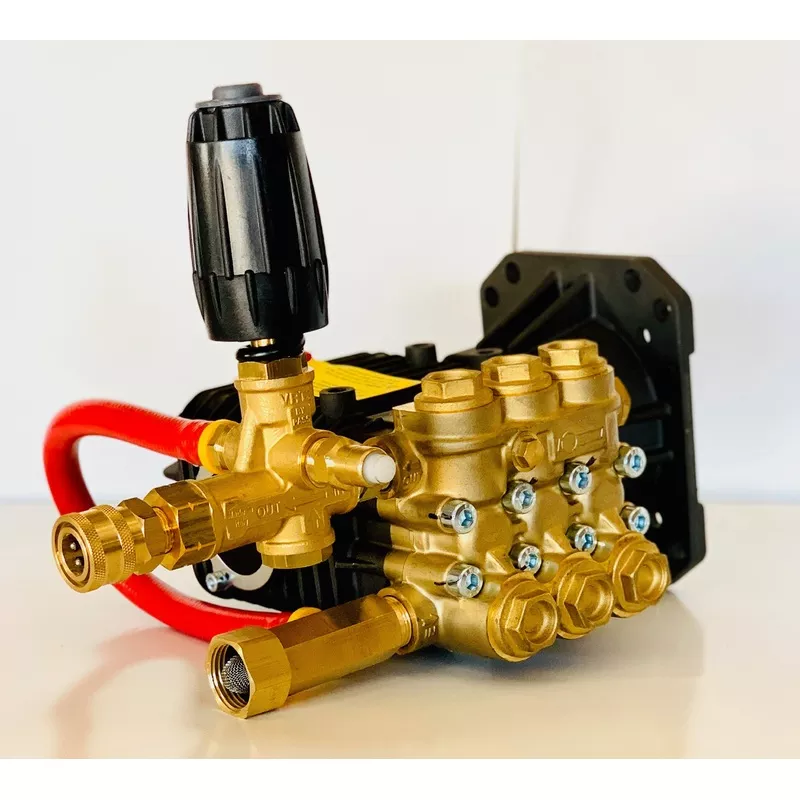

LWD3025G 3GPM 2500PSI 3/4″ GAS FLANGE
FEATURES
- Reversible crankshaft for easy righ or left hand mounting
- Forged bronze connecting rods with lifetime warranty
- Hardened stainless steel piston guides
- High efficiency stainless steel check valves
- Abrasion proof, heat resistant, industrial ceramic plungers
- High quality buna-textile double sealing v-packings
- High quality oversized bearings
- Design for optimal operating temperature
- Die-cast anodized aluminum chrankshaft fin
- Includes Thermal Relief Valve, VR54 Unloader and FittingsPMR (Pump Made Ready)
SPECIFICATIONS:
- Maximum Flow: 3.0 GPM
- Maximum Pressure: 2500 PSI
- Maximum Pump Speed: 3400 RPM
- Minimum Horsepower Requirements: 7.5 hp for gas engines
- Inlet: 1/2″FPT
- Discharge: 3/8″FPT
- Shaft Diameter: 3/4″ hollow with gas flange
- Crankcase Capacity: 9.87 oz. use SAE 30 ND oil
- Weight: 13.4 lbs.
Lubrication:fill crankcase with SAE 30 Non Detergent oil per pump specifications. Change oil after 50 hour break-in period, then in 100 hour intervals thereafter.
